P-001 · Prototype stage

TactiHang

The hanger that fits the person — a modular system that widens for larger frames and grows with your kids.

Get notified at launch. No spam — one email when it's ready.

Two fully assembled TactiHang hangers in orange and grey on a dark background — **Fig. 01** — assembled units · orange and grey

The problem

Hangers are built to one narrow standard

A standard hanger assumes a standard shoulder. Too narrow for larger-framed people, it drops shirts into the closet with stretched necks and shoulder bumps. Too fixed for kids, it's replaced size after size as they grow. Both are the same failure: a fixed object asked to fit changing people.

The product

As printed, on the rail

Matte PETG in safety orange and slate grey. Next to a wire hanger, the difference in shoulder support is the whole point.

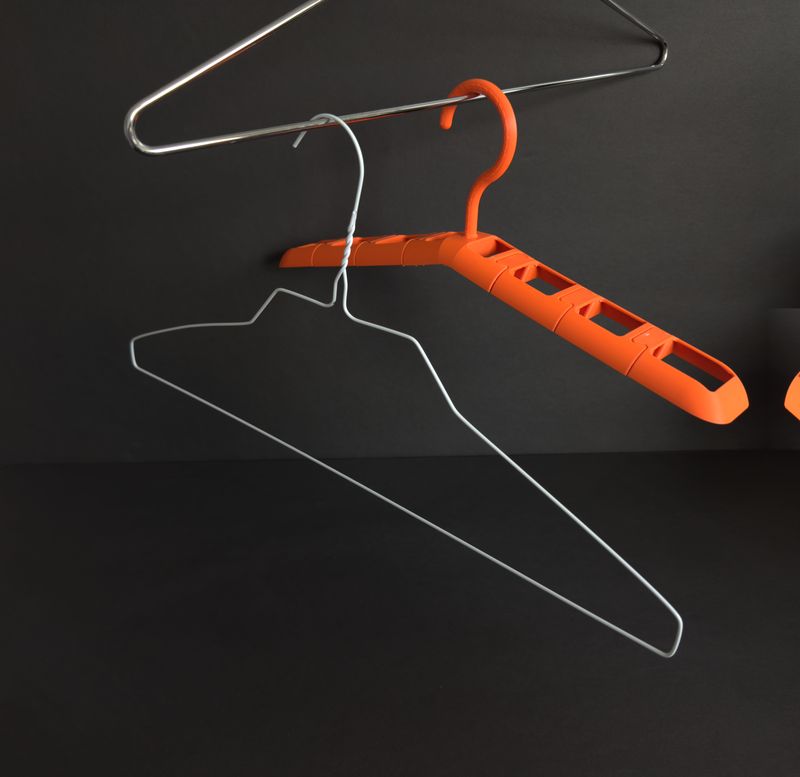

TactiHang hanging on a closet rail beside two standard wire hangers for comparison — **Fig. 02** — beside standard wire hangers

Assembly · CAD view

Ten components. Watch them seat.

An inspection view of the production geometry — scroll and the hanger assembles itself, segment by segment, around the central body. Drag to rotate at any point. This is raw CAD geometry, not a product render — the photography above shows the printed product's true finish.

Drag to rotate · Scroll to zoom

The mechanism

Three parts. One system.

A central piece, a threaded hanger hook, and attachable arm extensions. Segments join on tapered dovetail joints — self-aligning under load — and lock with embedded magnets.

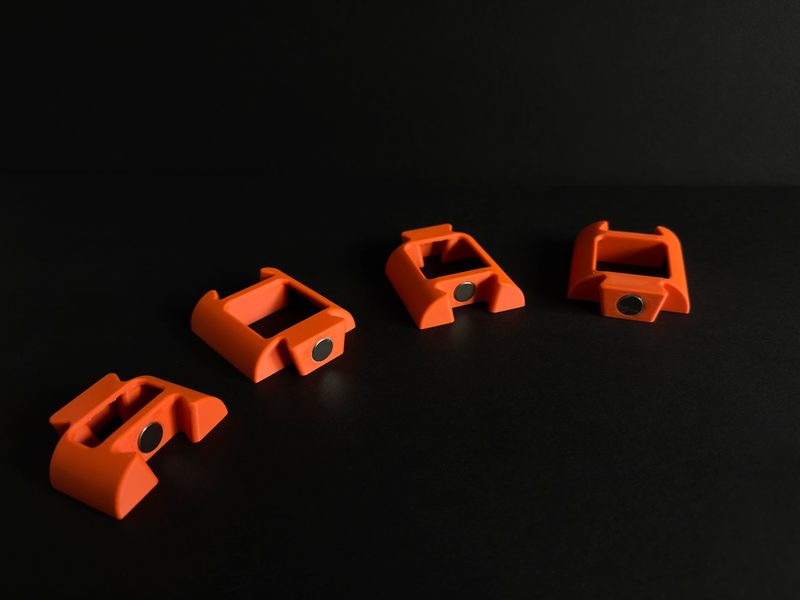

Tapered dovetail joints

The taper does the structural work: the more weight a garment puts on the arms, the tighter the joint seats. Geometry carries the load — the magnets just keep everything home when it's empty.

Magnet-secured

Embedded magnets at every interface snap segments into alignment and hold the assembly together off the rail. Strong enough to trust, easy enough to reconfigure in seconds.

How it adjusts

Add a segment. Remove a segment. Done.

Sizing up is a five-second job: pull an arm free of its dovetail, click an extension into the chain, and reseat it. No tools, no threads to strip, no new hanger to buy.

Broad shoulders? Run the full segment set. Kid's closet? Start short and add a segment each growth spurt — the same hanger from age four to fourteen.

Assembled TactiHang hangers on a dark background with loose arm segments arranged in front, magnets visible in the joint faces — **Fig. 04** — arm segments, loose

Specifications

Built to hold

System: Modular: central piece, threaded hanger hook, attachable arm extensions
Joints: Tapered dovetail, self-seating under load, secured with embedded magnets
Hook: 8 mm diameter, threaded attachment into central piece
Material: PETG — selected for better creep and heat resistance than PLA; validated across PLA, PETG, and ABS prints with no structural failures
Magnet retention: CA-bonded for strong adhesion to plastic
Made in: Canada — designed, printed, and assembled in-house

⚠ Safety

Contains small parts and magnets — choking hazard. Not suitable for children under 3. Adjustment by adults or older children only; keep loose segments and magnets away from young children and pets.

Launch list

Be first on the rail

TactiHang is in final prototype stage. Join the list and get one email the day it goes on sale.

One email at launch. That's it.
